Metalworking demands precision, speed, and the correct tooling. You reach for your die grinder to deburr a fresh weld or shape a metal casting. You see two distinct options in your toolbox. One bit features a simple spiral flute. The other displays a complex cross-hatch pattern. Which one produces the result you need?

Read on as we explain how to choose between single-cut and double-cut rotary burrs. You’ll learn how to pick the right tool for heavy stock removal or smooth finishing.

Understanding Tungsten Carbide Advantages

Drill Bit Warehouse constructs these rotary files from high-quality Tungsten Carbide. This material significantly outperforms High-Speed Steel (HSS). Carbide resists heat build-up. It maintains a sharp cutting edge longer. It also withstands higher temperatures generated during aggressive grinding.

Machinists run carbide tools at higher speeds than HSS. This capability enables faster cycle times and improved finishes. While HSS tools soften at high temperatures, carbide maintains its hardness. This rigid structure allows you to work with challenging materials like stainless steel and cast iron without the tool failing prematurely.

The Single Cut Rotary Burr

The single-cut burr features a right-hand spiral flute along the head. Machinists often refer to this as a “standard cut” or “upcut.” This geometry produces large, wide chips. The design prioritizes heavy material removal.

Applications for Single Cut Burrs

These tools excel with ferrous metals. Materials such as stainless steel, hardened steel, copper, and cast iron respond well to single-cut geometry. The single flute design bites into the material aggressively. This action strips away stock rapidly.

The large chip formation serves a specific purpose. It clears the flute quickly. This prevents the tool from loading or clogging when processing materials that produce long, stringy chips. While the finish appears rougher than other options, its removal speed makes it the preferred choice for initial shaping and heavy deburring.

Primary Benefits of Single Cut

• Rapid Stock Removal: The aggressive flute angle shears metal away quickly.
• Heat Dissipation: Larger chips carry heat away from the workpiece and the tool.
• Clog Resistance: The open flute design ejects debris efficiently.

The Double Cut Rotary Burr

Double-cut burrs feature two flutes that cross each other. A right-hand spiral and a left-hand spiral intersect to form a diamond or cross-hatch pattern. This geometry changes the physics of the cut entirely.

Applications for Double Cut Burrs

This style works on various materials, including ferrous and non-ferrous metals like aluminum, soft steel, and plastics. Its cross-hatch pattern breaks chips into small particles rather than long strings.

Operators prefer double cut burrs for better control, as they pull less and reduce chatter and vibration with handheld die grinders. This results in a smoother feel and a superior finish.

Primary Benefits of Double Cut

• Superior Finish: The minor chips result in a smoother surface.
• Operator Control: Reduced vibration allows for precise detailing.
• Versatility: Works on a broader variety of materials, including medium-hard metals.

Comparing Performance Characteristics

Choosing between single-cut and double-cut rotary burrs requires assessing your specific task goals. Single-cut tools produce long, sharp chips that can be hazardous if you’re not wearing proper eye and skin protection. In contrast, double-cut tools grind metal into a fine powder or small granules. This waste is easier to manage and won’t tangle around the tool shank, allowing you to work efficiently.

Let’s dive deeper into how each type affects surface quality and cutting action.

Surface Quality

If the job requires a paint-ready surface or a fine polish, the double cut is the winner. It reduces the need for extensive sanding after grinding. If the job involves hogging out weld root or resizing a hole where finish matters less than dimension, the single cut provides the necessary aggressiveness.

Cutting Action

Single-cut burrs tend to pull the grinder forward. You must maintain a firm grip to counteract this force. Double cut burrs remain neutral. They allow you to grind in multiple directions without the tool fighting your movements. This makes the double cut ideal for operators with less experience or for delicate, intricate work.

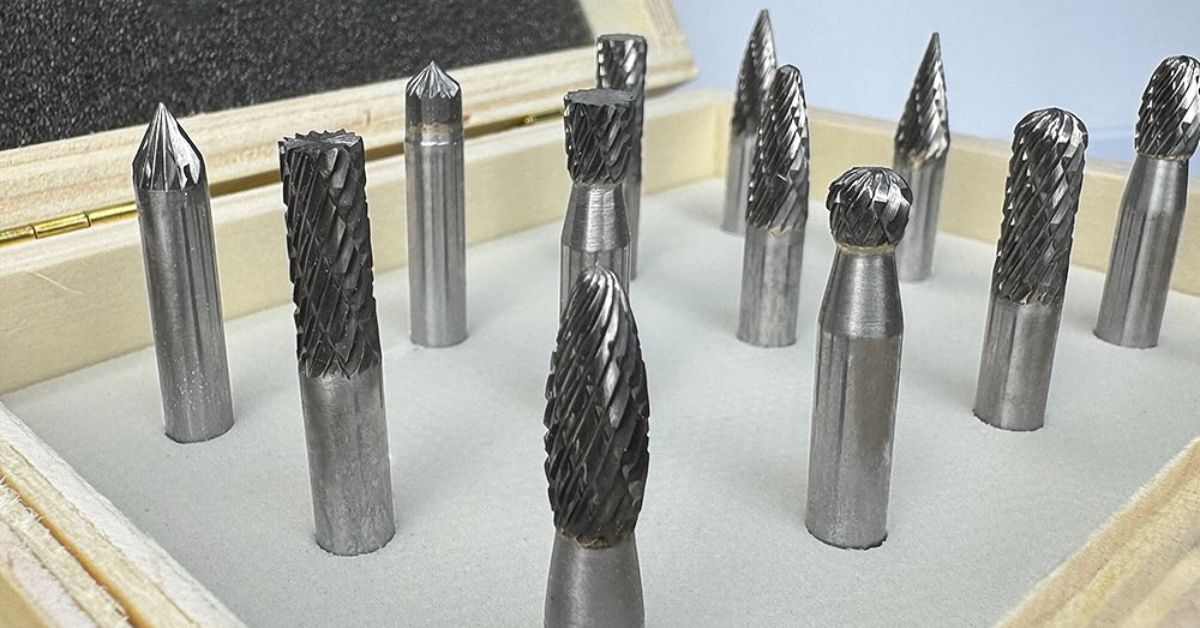

Decoding Burr Shapes and Applications

Selecting the flute style solves only half the equation. You must also match the head shape to the contour of your workpiece. Drill Bit Warehouse stocks a massive inventory of shapes to fit every crevice and angle.

Cylindrical Shapes (SA, SB, SC)

• SA Style (Cylindrical No End Cut): Use this for flat surfaces and outer contours. The smooth end prevents the tool from digging into the bottom of a slot.
• SB Style (Cylindrical End Cut): This features cutting edges on the top. It allows you to grind the bottom of a blind hole or a slot while smoothing the side walls.
• SC Style (Cylindrical Ball Nose): This shape combines a cylinder with a rounded top. It works perfectly for radiused grooves and surface contouring.

Tree and Cone Shapes (SF, SG, SM)

• SF Style (Tree Radius End): The tapered sides and rounded tip allow for grinding inside curved channels and rounding off edges.
• SG Style (Tree Pointed End): This precision shape reaches into tight acute angles. It cleans out narrow contours that broader tools cannot access.
• SM Style (Cone): This shape narrows to a point. It functions like a countersink, deburring holes, and machining tight internal angles.

Ball Shapes (SD)

The SD Style ball shape allows material to be hollowed out. It creates concave cuts. You can use this to prepare surfaces for welding or to carve out free-form shapes in metal. The spherical design permits cutting from multiple approach angles.

Operational Best Practices

Getting the most life out of your carbide tooling requires proper technique. Even the highest-quality Tungsten Carbide fails under abuse.

Speed and Pressure

Let the RPM do the work. Carbide burrs work best at high speeds; slow speeds can chip the flutes. Smaller heads need higher speeds. Follow the manufacturer’s RPM guidelines.

Avoid excessive pressure to prevent heat and breakage. Use light, steady pressure and keep the tool moving. Staying in one spot can cause the tool to dig in, creating an uneven surface.

Shank Security

Insert the shank fully into the collet. A shank that extends too far out causes runout. Runout causes vibration, which leads to premature tool failure and a poor finish. Clamp the tool tightly to prevent slippage.

Direction of Cut

For single cut burrs, move the tool against the rotation (conventional milling). Moving with the rotation (climb milling) causes the tool to skip and drag. Double-cut burrs offer greater forgiveness and allow cutting in both directions, though moving against the rotation still yields the most consistent control.

The Importance of Safety

Grinding metal creates debris and sparks. Wear safety glasses, face shield, and heavy gloves. Secure clothing and hair, as rotary tools can catch loose items. Ensure the workpiece is secured in a vise or clamps; holding it by hand is risky. Check the burr for damage before each use, as cracked or chipped heads can shatter at high RPM.

Elevate Your Metalworking Precision

The choice between single- and double-cut rotary burrs determines the success of your grinding task. Understanding these differences empowers you to work more efficiently and produce better results.

Drill Bit Warehouse supplies the industrial-grade tooling required for professional results. We stock a comprehensive selection of shapes and sizes to handle any grinding challenge. Equip your shop with premium carbide burr bits and experience the difference in your next project.
