High Speed Steel Spiral Point Taps
Price range: $66.09 through $320.04
Spiral Pointed Plug Tap
Please use drop down menu to select your size!
Sold per pack!

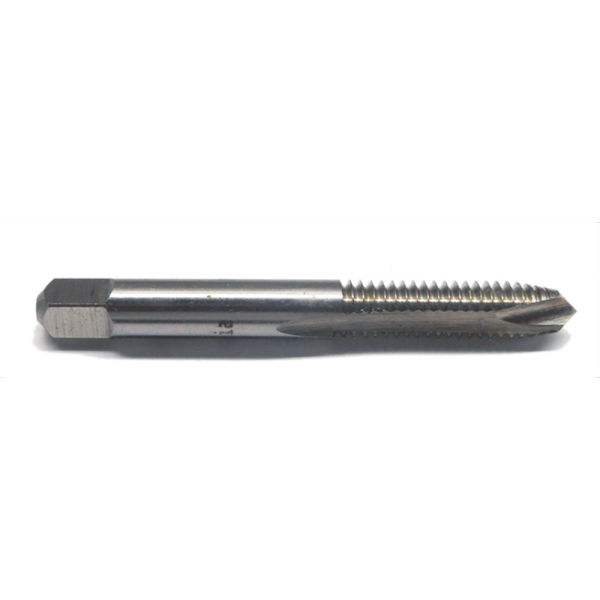

High Speed Steel | Spiral Pointed Plug Tap
High Speed Steel (HSS) Spiral Point Plug Taps, commonly known as Gun Taps, are designed for fast, efficient threading in through holes. The spiral point drives chips forward ahead of the cutting edges, reducing chip packing for smoother cutting, improved thread quality, and longer tool life in production environments.
These general-purpose machine taps are ideal for use in steel, cast iron, aluminum, brass, bronze, and many other machinable materials. Suitable for machine tapping and hand tapping where through-hole applications allow chips to exit the workpiece.
Taps are used for general and machine operations.
Sold in Pack Quantity Only:
2-56 thru 7/16″-20 =pack of 12
1/2″ -13 thru 3/4″ – 10 = pack of 6
7/8″ and up = 1 per pack
| High Speed Steel Spiral Point Plug Taps | DE- | Pack QTY |
| 2 – 56 NC 2Flute H-2 ` | CT-SP256 | 12 |
| 4 – 40 NC 2Flute H-2 | CT-SP440 | 12 |
| 5 – 40 NC 2Flute H-2 | CT-SP540 | 12 |
| 6 – 32 NC 2Flute H-3 | CT-SP632 | 12 |
| 6 – 40 NF 2Flute H-2 | CT-SP640 | 12 |
| 8 – 32 NC 2Flute H-3 | CT-SP832 | 12 |
| 10 – 24 NC 2Flute H-3 | CT-SP1024 | 12 |
| 10 – 32 NF 2Flute H-3 | CT-SP1032 | 12 |
| 12 – 24 NC 2Flute H-3 | CT-SP1224 | 12 |
| 1/4″ – 20 NC 2Flute H-3 | CT-SP1420 | 12 |
| 1/4″ – 28 NF 2Flute H-3 | CT-SP1428 | 12 |
| 5/16″ – 18 NC 2Flute H-3 | CT-SP51618 | 12 |
| 5/16″ – 24 NF 2Flute H-3 | CT-SP51624 | 12 |
| 3/8″ – 16 NC 2Flute H-3 | CT-SP3816 | 12 |
| 3/8″ – 24 NF 3Flute H-3 | CT-SP3824 | 12 |
| 7/16″ – 14 NC 3Flute H-3 | CT-SP71614 | 12 |
| 7/16″ – 20 NF 3Flute H-3 | CT-SP71620 | 12 |
| 1/2″ – 13 NC 3Flute H-3 | CT-SP1213 | 6 |
| 1/2″ – 20 NF 3Flute H-3 | CT-SP1220 | 6 |
| 9/16″ – 12 NC 3Flute H-3 | CT-SP91612 | 6 |
| 9/16″ – 18 NF 3Flute H-3 | CT-SP91618 | 6 |
| 5/8″ – 11 NC 3Flute H-3 | CT-SP5811 | 6 |
| 5/8″ – 18 NF 3Flute H-3 | CT-SP5818 | 6 |
| 3/4″ – 10 NC 3Flute H-3 | CT-SP3410 | 6 |
| 3/4″ – 16 NF 3Flute H-3 | CT-SP3416 | 6 |
| 7/8″ – 9 NC 3Flute H-4 | CT-SP789 | 1 |
| 7/8″ – 14 NF 3Flute H-4 | CT-SP7814 | 1 |
| 1″ – 8 NC 3Flute H-4 | CT-SP18NC | 1 |
| 1″ – 12 NF 3Flute H-4 | CT-SP112NF | 1 |
| 1″ – 14 NS 3Flute H-4 | CT-SP114NS | 1 |
For questions please call us at 800-350-8665
| Weight | 1.3605442176870748 lbs |
|---|---|
| Dimensions | 4 × 0.25 × 0.025 in |
| Tap Size: | 2 – 56 NC 2Flute H-2, 4 – 40 NC 2Flute H-2, 5 – 40 NC 2Flute H-2, 6 – 32 NC 2Flute H-3, 6 – 40 NF 2Flute H-2, 8 – 32 NC 2Flute H-3, 10 – 24 NC 2Flute H-3, 10 – 32 NF 2Flute H-3, 12 – 24 NC 2Flute H-3, 1/4" – 20 NC 2Flute H-3, 1/4" – 28 NF 2Flute H-3, 5/16" – 18 NC 2Flute H-3, 5/16" – 24 NF 2Flute H-3, 3/8" – 16 NC 2Flute H-3, 3/8" – 24 NF 3Flute H-3, 7/16" – 14 NC 3Flute H-3, 7/16" – 20 NF 3Flute H-3, 1/2" – 13 NC 3Flute H-3, 1/2" – 20 NF 3Flute H-3, 9/16" – 12 NC 3Flute H-3, 9/16" – 18 NF 3Flute H-3, 5/8" – 11 NC 3Flute H-3, 5/8" – 18 NF 3Flute H-3, 3/4" – 10 NC 3Flute H-3, 3/4" – 16 NF 3Flute H-3, 7/8" – 9 NC 3Flute H-4, 7/8" – 14 NF 3Flute H-4, 1" – 8 NC 3Flute H-4, 1" – 12 NF 3Flute H-4, 1" – 14 NS 3Flute H-4 |
