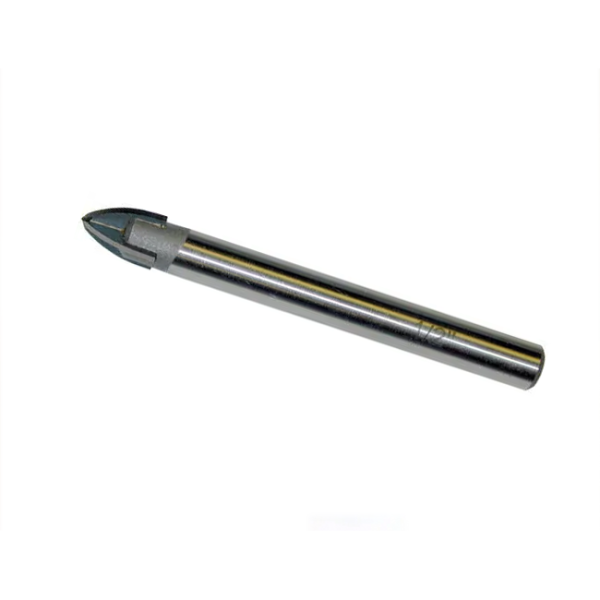

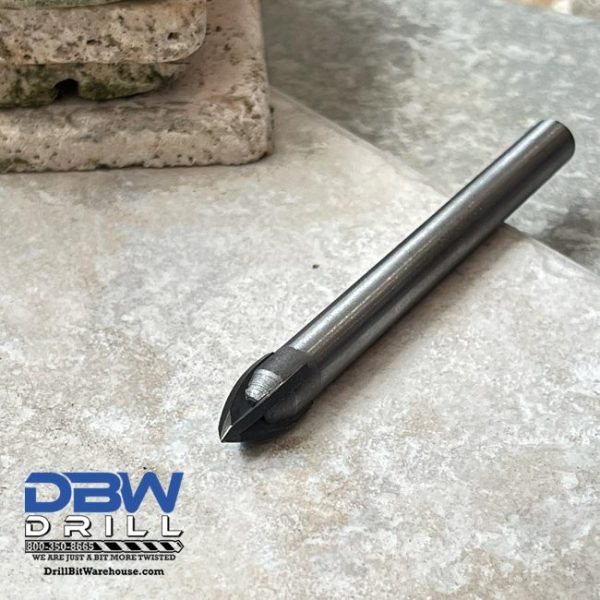

Quad-Tip Carbide Glass & Porcelain Tile Drill Bits
Professional Carbide Drill Bits for Glass, Porcelain & Tile
Designed for today’s extremely hard tile materials, these premium Quad-Tip Carbide Drill Bits deliver fast, accurate drilling in porcelain, ceramic tile, glass, marble, and other brittle materials. The four-edge carbide tip provides improved stability, reduced walking, and longer service life compared to conventional single-tip glass and tile drill bits.
Ideal for installing bathroom accessories, shower doors, shelving, mirrors, anchors, and fixtures, these drill bits produce clean, accurate holes while helping reduce chipping on hard surfaces.
For maximum performance, operate at low drill speeds while applying steady pressure and continuous water cooling to the cutting tip.
Features
- Premium four-edge carbide cutting tip
- Designed for porcelain, ceramic tile, glass, and marble
- Starts accurately with reduced walking
- Faster drilling than traditional spear-point glass bits
- Longer tool life through improved cutting geometry
- Produces clean, precise holes
- Compatible with corded and cordless drills
Recommended Materials
- Porcelain Tile
- Ceramic Tile
- Glass
- Marble
- Slate
- Stone Tile
For best results: Use low RPM, firm, even pressure, and keep the tip continuously cooled with water during drilling.
| Size | Decimal | Part Number |
|---|---|---|
| 3/16″ | 0.1875 | DB-TGDQ.187 |
| 1/4″ | 0.2500 | DB-TGDQ.250 |
| 3/8″ | 0.3750 | DB-TGDQ.375 |
| 1/2″ | 0.5000 | DB-TGDQ.500 |
| 5/8″ | 0.6250 | DB-TGDQ.625 |
| 3/4″ | 0.7500 | DB-TGDQ.750 |
| 1″ | 1.0000 | DB-TGDQ.1000 |
