Eibenstock ETN 162/3 P Wet & Dry Diamond Core Drill – Handheld or Rig-Mounted, Up to 8″

Built in Germany for serious jobsite demands, the Eibenstock ETN 162/3 P is a true combination wet and dry diamond core drill designed for contractors who need maximum flexibility, power, and control.

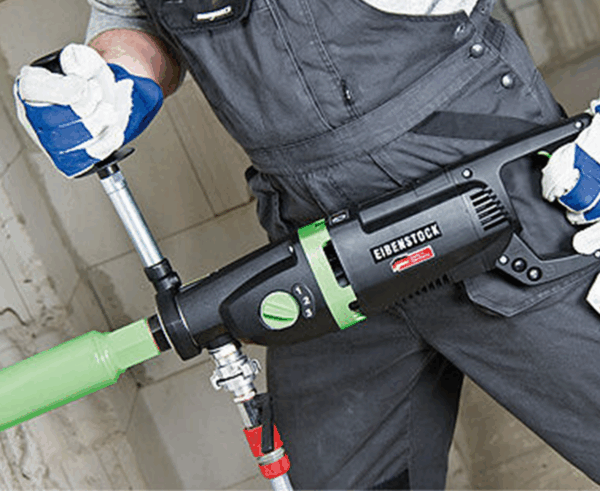

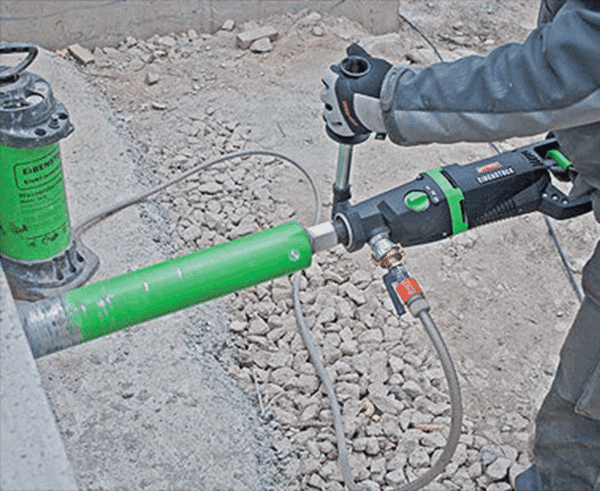

A high-output 19.5 Amp motor paired with a 3-speed oil-bath gearbox delivers exceptional torque across a wide range of drilling diameters. Use the ETN 162/3 P handheld for dry coring in brick, block, and masonry up to 8″, or switch to wet drilling in reinforced concrete up to 3-1/4″ handheld. When mounted in a drill stand, the system cores up to 6-3/8″ diameter in concrete with excellent stability and precision.

The combination spindle integrates both a water swivel and dust extraction port, allowing fast changeover between wet and dry applications. A direct vacuum connection improves dust control during dry drilling, while the quick-mount stand interface allows rapid transition from handheld to rig-mounted operation. The drill stand column adjusts up to 45°, making angled drilling simple and accurate.

Safety and durability are built in. The ETN 162/3 P features a mechanical slip clutch, thermal and overcurrent protection, optical overload indicator, and a service LED that alerts the operator when carbon brushes are nearing replacement—helping prevent downtime and extend tool life.

For professionals who want one core drill that truly does it all, the Eibenstock ETN 162/3 P stands apart.

Key Features

• Wet and dry diamond core drilling

• Handheld dry drilling up to 8″ in masonry

• Handheld wet drilling up to 3-1/4″ in concrete

• Rig-mounted drilling up to 6-3/8″ in concrete

• 19.5 Amp high-torque motor

• 3-speed oil-bath gearbox with oil pump

• Integrated water swivel and dust extraction port

• Mechanical safety slip clutch

• Overload indicator, thermal protection, constant speed

• Service LED for carbon brush monitoring

• Quick-mount system for fast rig attachment

• German-engineered for continuous professional use

Applications

• Wet drilling in reinforced concrete, stone, and asphalt

• Dry coring in brick, block, limestone, and abrasive masonry

• Plumbing, HVAC, and mechanical installations

• Electrical and utility penetrations

• Civil engineering and site construction

Drilling Capacity

Concrete – Wet Drilling

Brick & Masonry – Dry Drilling

*with drill stand

Technical Specifications

What’s Included

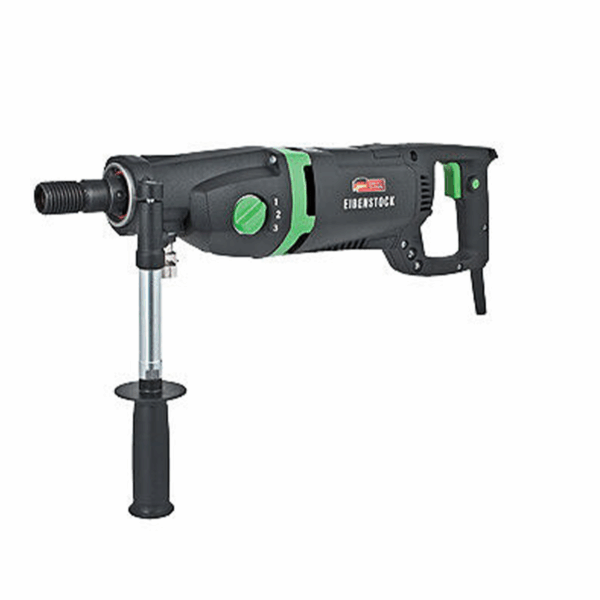

• Eibenstock ETN 162/3 P Core Drill

• Built-in 1-1/4″-7 UNC spindle

• 5/8″-11 UNC adapter

• Integrated water swivel

• Integrated dust extraction port
