Trident Tipped HSS Stepped Point Drill Bits, Per Pack

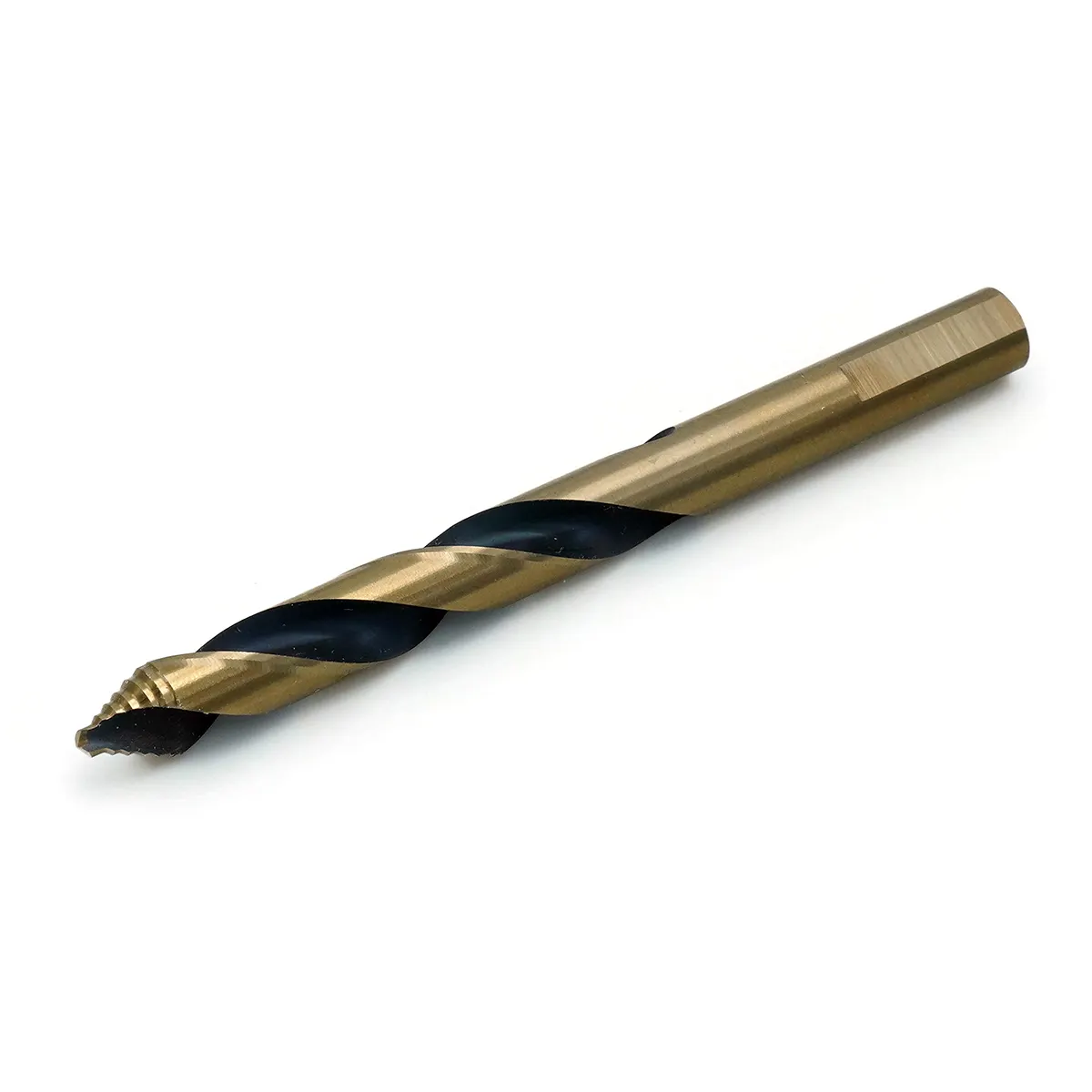

Trident Tipped Super Sonic stepped point drill bits, sold by the pack in the sizes you burn through. The Trident point works like a step drill, so it enlarges existing holes without damaging the point. Super Hi-Molybdenum tool steel with a gold oxide coating, built for high-speed drilling in metal. Choose a size above.

1/8″, 1/4″: Sold 6 per pack

5/16″, 3/8″, 1/2″: Sold 3 per pack

• Trident point: step drill style tip enlarges existing holes without point damage
• Split point, self-centering, no center punch
• Super Hi-Molybdenum tool steel, gold oxide coating
• Mechanic length, 3-flat anti-slip shank
• Made in USA

Applications

• Hard steel: split point starts on contact and the tip geometry keeps heat and wear down.
• Sheet metal: self-centering start with no center punch and no walking.
• Brass and acrylic: clean, accurate holes.
• Hole enlarging: step up from a smaller hole without damaging the point.

Specifications

Using them

• Small sizes run fast. Drop the speed as the size goes up and in harder steel. Blue chips or squealing mean the speed is too high.
• Use cutting oil in steel. Keep the feed steady, because rubbing dulls the edge and work-hardens stainless.
• Mechanic length is built for rigidity, not reach. Use a longer bit for deep holes.
• These are HSS. For hardened steel or heavy stainless production, step up to cobalt or carbide.
