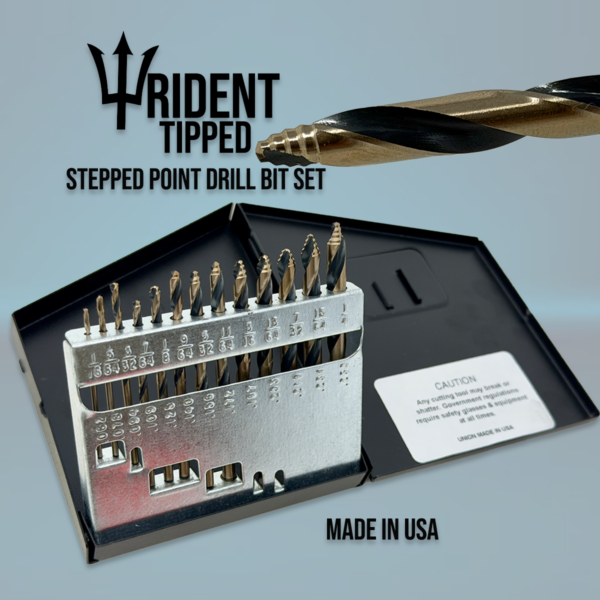

Trident 13pc Mechanic Length Drill Bit Set – Black & Gold Stepped Point (1/16″ to 1/4″)

Made in USA

This 13-piece mechanic length drill bit set covers the core fractional sizes from 1/16″ through 1/4″ in 64ths—the sizes most shops reach for every day. Each bit uses a Trident stepped point so the tip centers and starts the hole quickly, with less walking on steel and other metals.

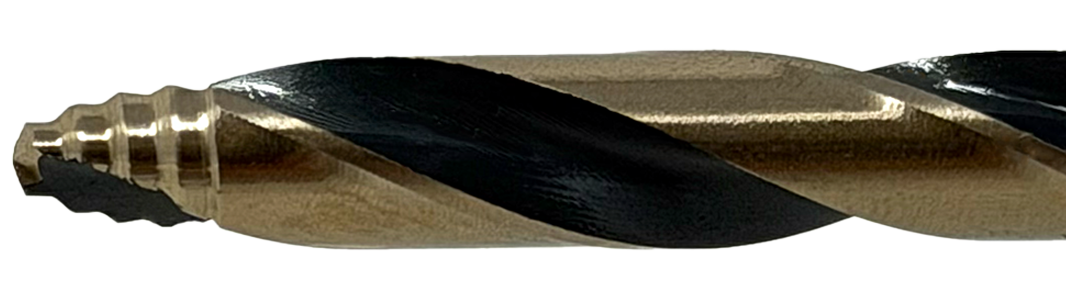

Why the Trident (stepped) point matters

A standard point can skate across the surface until a dimple forms. The Trident stepped geometry acts like a built-in pilot: it grabs, centers, and advances into the material so you spend less time fighting the start and more time drilling a clean hole. That helps on flat stock, brackets, and workpieces where a center punch isn’t practical.

Mechanic length for control

These are mechanic length bits—shorter than jobber length—so they flex less under load. That extra rigidity improves accuracy in a hand drill, drill press, or tight spaces where a longer bit wanders or binds.

Black and gold finish

The black and gold surface treatment helps manage heat and chip flow during metal drilling. Bits stay cutting instead of rubbing as temperature rises in steel and general fabrication work.

What’s in the set

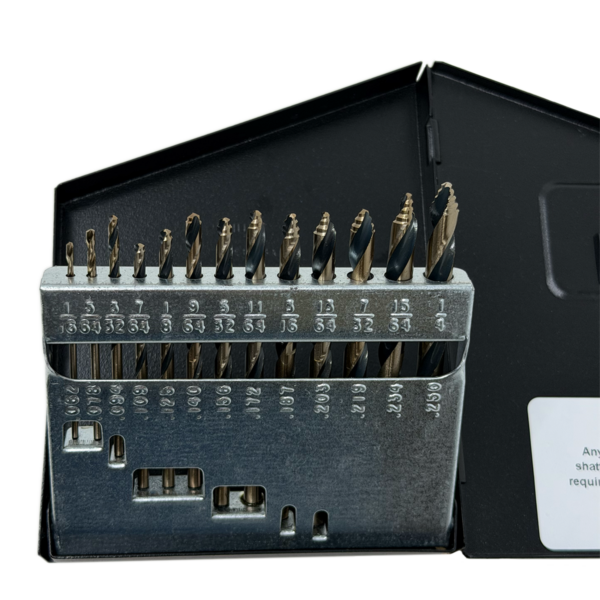

13 sizes: 1/16″, 5/64″, 3/32″, 7/64″, 1/8″, 9/64″, 5/32″, 11/64″, 3/16″, 13/64″, 7/32″, 15/64″, 1/4″

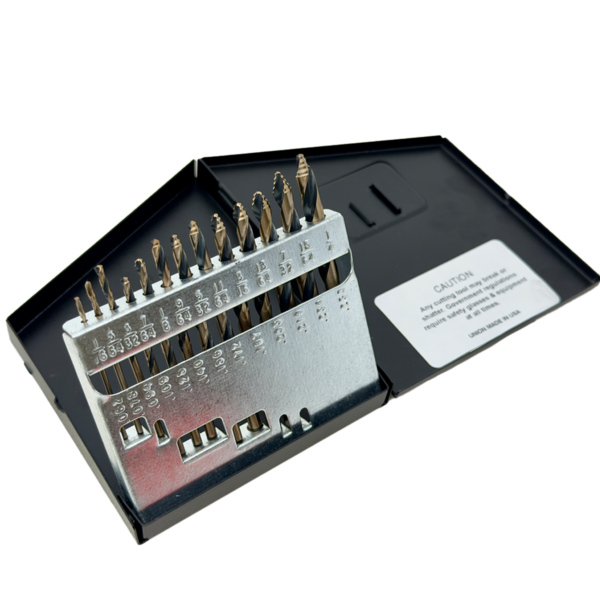

Packed in a steel index case with a built-in size gauge—no plastic case, no loose bits rolling around the toolbox.

Made in the USA and packed in a steel index that doubles as a size gauge.

No plastic junk.

No wasted space. Just a tight, reliable set that earns its spot.

If you’re searching for drill bits for steel, drill bits for metal, black and gold drill bits, or a serious USA-made drill bit set—this is where you land.

Key Features

• Trident stepped point design – fast starts, aggressive bite
• Mechanic length – increased rigidity and control
• Black and gold finish – heat resistance and durability
• Sizes 1/16″ to 1/4″ in 64ths
• 13-piece set of core shop sizes
• Made in USA
• Steel index case with built-in size gauge
