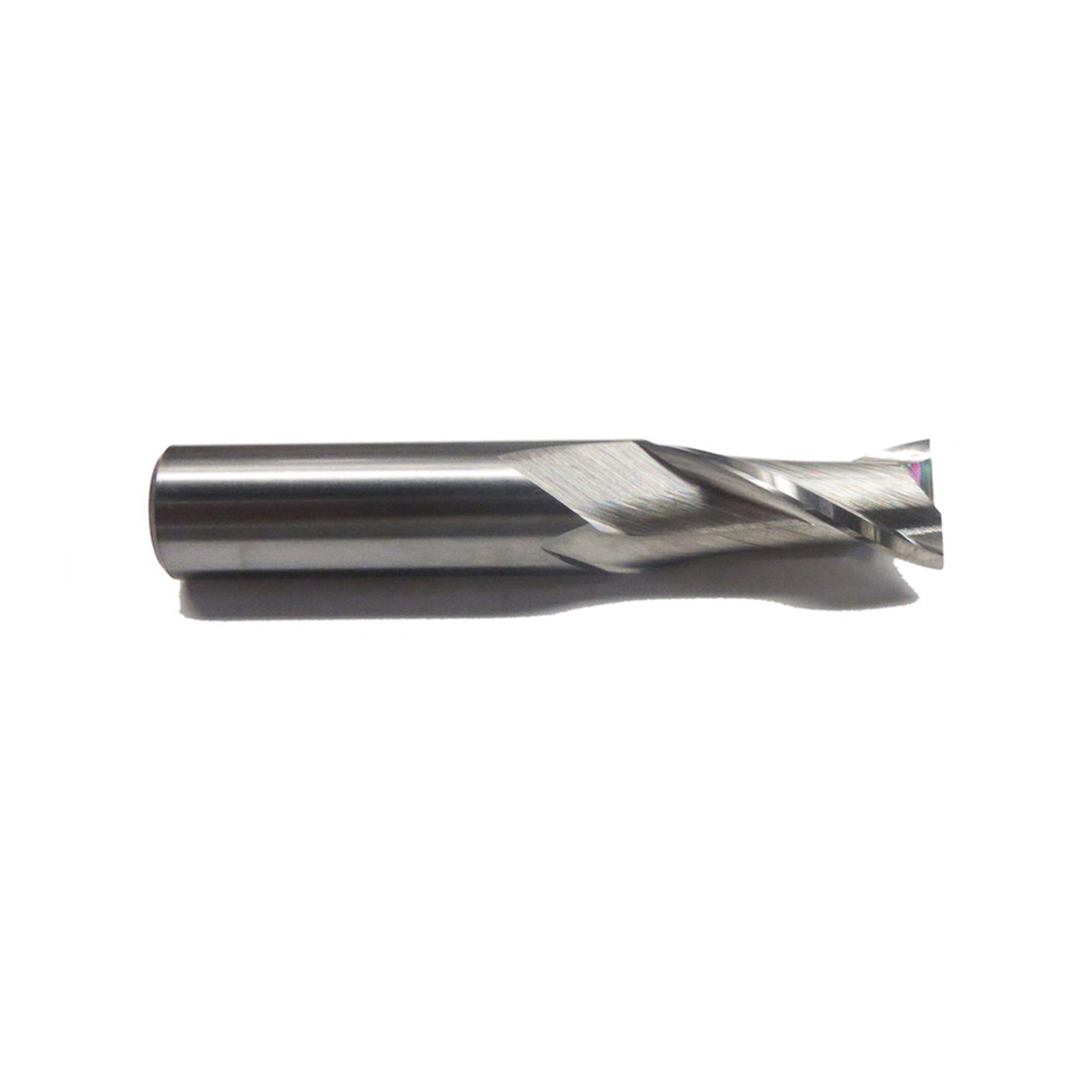

X204 Series 2-Flute Solid Carbide Corner Radius End Mill

X204 Series – 2-Flute Solid Carbide End Mill

Engineered for high-performance machining of ferrous and non-ferrous materials, X204 Series End Mills combine a wear-resistant sub-micron carbide substrate with a strong 2-flute, 30° helix design.

The corner radius reinforces the cutting edge to reduce chipping and improve tool life during demanding milling operations. The open 2-flute geometry provides efficient chip evacuation and dependable performance when slotting, profiling, pocketing, and removing material at higher feed rates.

Available in multiple lengths and coating options for professional CNC machining, production work, fabrication, and toolroom applications.

Features

• Premium sub-micron solid carbide construction
• 2-flute cutting geometry
• 30° helix angle
• Corner-radius cutting edge
• Single-ended design
• Multiple length options
• Universal application across ferrous and non-ferrous materials
• Excellent wear resistance and cutting-edge strength
• Efficient chip evacuation
• Diameter tolerance: +0.000″ / -0.002″
• Shank tolerance: +0.0000″ / -0.0005″
• Made in the USA

Recommended Work Materials

• Mild and carbon steels
• Alloy and tool steels
• Cast iron
• Aluminum
• Brass and other non-ferrous materials
• Lower-hardened steels up to approximately 40 HRC

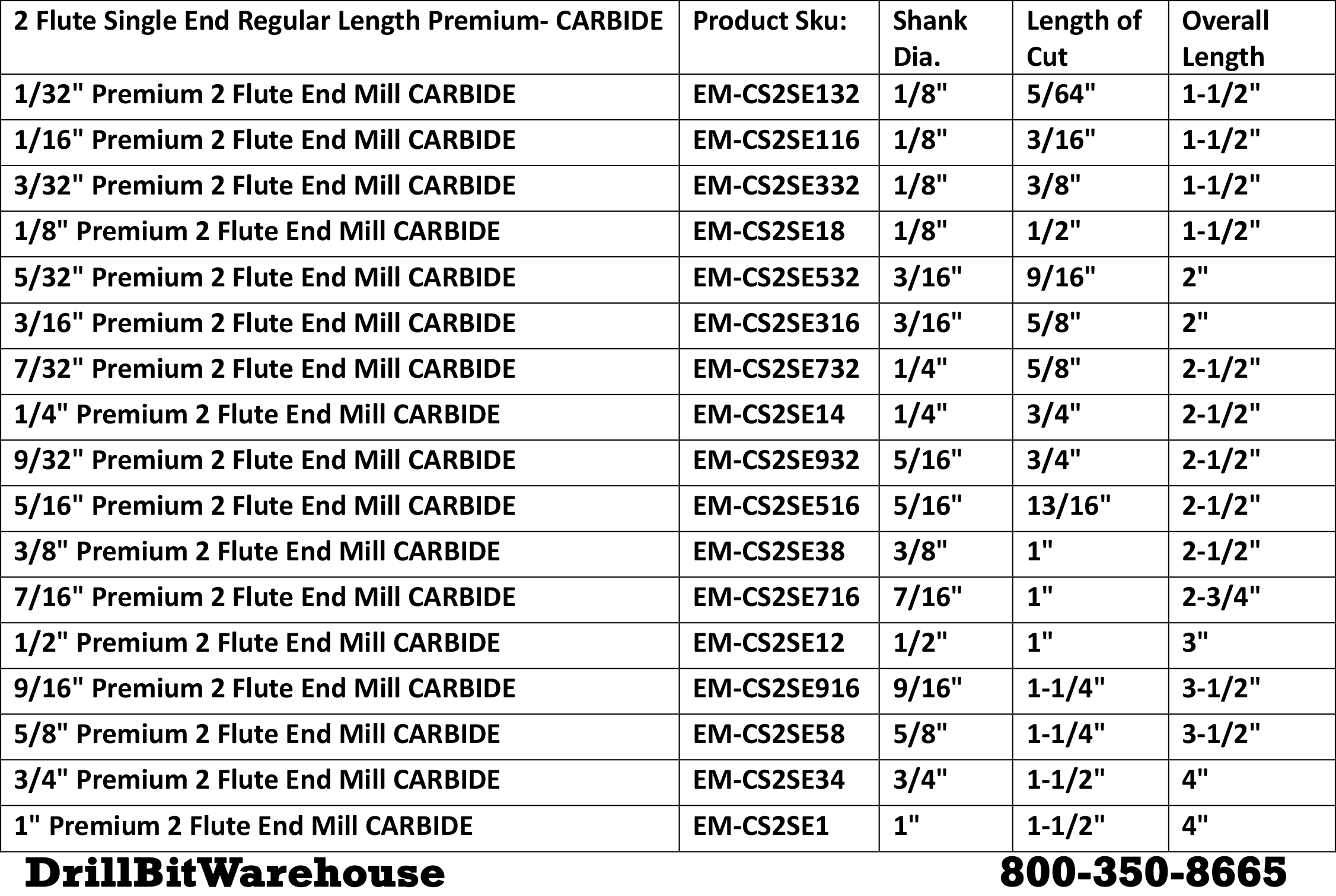

Please use the dropdown menu to select the required diameter, corner radius, length, and coating.
