3-Flute solid carbide TiN coated metric drill bits with 150° split point for CNC machining.

Carbide 3 Flute TiN Jobber Drill Bits – Metric

SKU: N/A

Categories:Carbide Drill Bits, METRIC Carbide Drill Bits 3 Flute

Tags:carbide, metric

Price range: $25.05 through $327.00

Metric 3 Flute Size:

Clear

Family Owned. Slightly Twisted.

Real people who actually know drill bits pick up the phone.

Fast Shipping Nationwide

Most orders are out the door the same or next business day.

Built for Steel, Not Shelves

Shop-grade bits for people who drill all day and break stuff for a living.

Stumped? Call the Bit Experts.

Tell us the material and the job, and we'll get you the right bit. 800-350-8665.

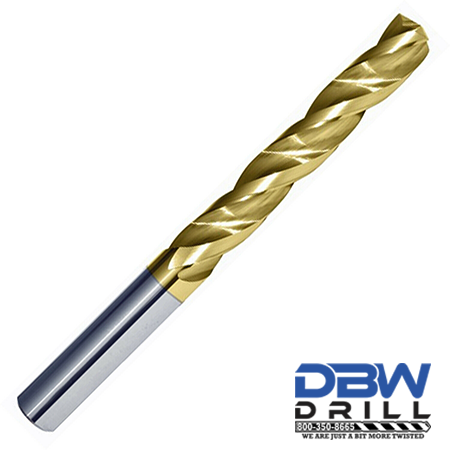

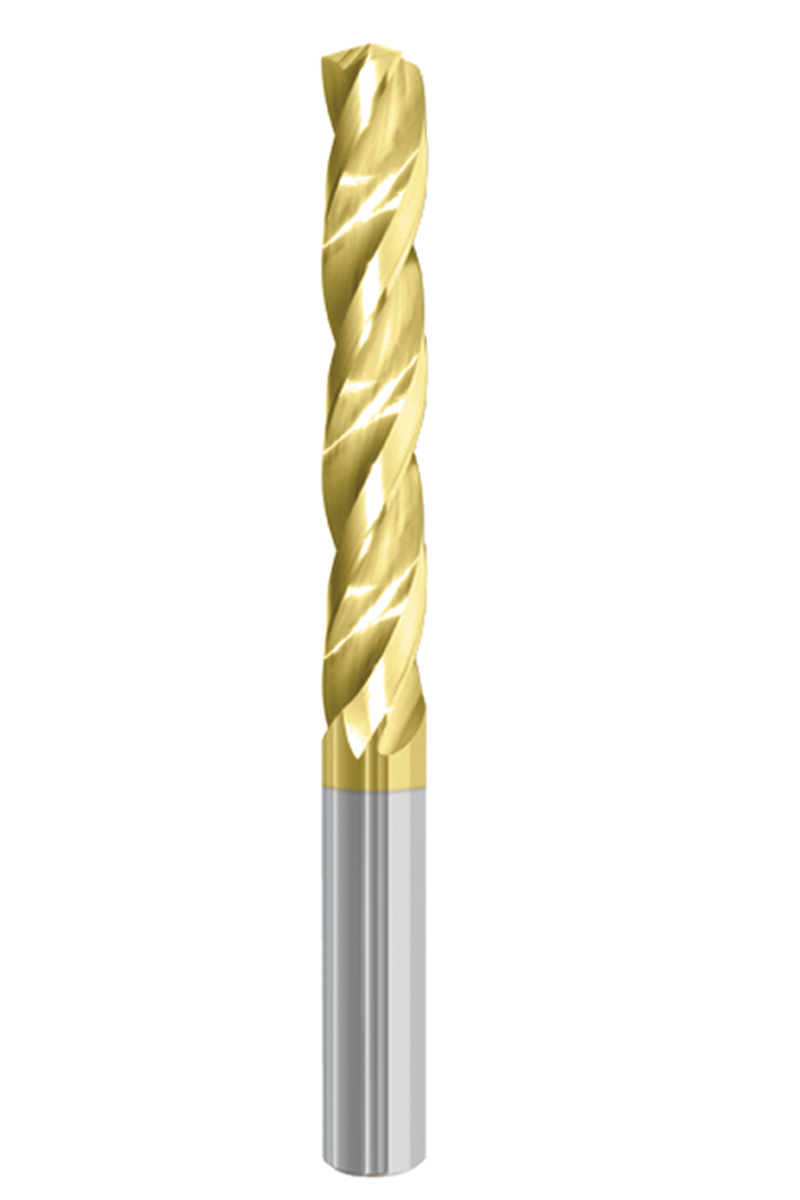

METRIC Solid Carbide 3-Flute Drill Bits – TiN Coated

Our Solid Carbide 3-Flute Metric Drill Bits are engineered for high-performance CNC machining where speed, accuracy, and long tool life are critical. Manufactured from premium sub-micrograin solid carbide with a precision-ground 150° split point and 28° helix, these drills provide excellent hole quality, increased rigidity, and outstanding wear resistance.

The 3-flute design offers a stronger core than conventional 2-flute drills, allowing higher feed rates and improved dimensional accuracy in rigid machining applications.

Made in USA

Ideal for drilling:

Carbon Steel
Alloy Steel
Stainless Steel
Tool Steel
Hardened Steel (up to 65 HRC, depending on application)
Cast Iron
Aluminum
Brass
Bronze
Other Non-Ferrous Alloys

Features

Premium Sub-Micrograin Solid Carbide
3-Flute High-Performance Geometry
Precision Ground 150° Split Point
28° Helix
TiN Coated for Increased Wear Resistance
Excellent Hole Accuracy & Surface Finish
Designed for CNC Machining Centers
Made in USA

Size	Part Number
3.0mm (.1181″)	DB-453-0.1181
4.0mm (.1575″)	DB-453-0.1575
5.0mm (.1969″)	DB-453-0.1969
6.0mm (.2362″)	DB-453-0.2362
7.0mm (.2756″)	DB-453-0.2756
8.0mm (.3150″)	DB-453-0.3150
9.0mm (.3543″)	DB-453-0.3543
10.0mm (.3937″)	DB-453-0.3937
11.0mm (.4331″)	DB-453-0.4331
12.0mm (.4724″)	DB-453-0.4724
14.0mm (.5512″)	DB-450-0.5512
16.0mm (.6299″)	DB-450-0.6299

If you CAN’T find it here……….CALL US at 1-800-350-8665

Additional information

Metric 3 Flute Size:	3.0mm(0.1181) Solid Carbide 3 Flute TiN Coated, 4.0mm(0.1575) Solid Carbide 3 Flute TiN Coated, 5.0mm(0.1969) Solid Carbide 3 Flute TiN Coated, 6.0mm(0.2362) Solid Carbide 3 Flute TiN Coated, 7.0mm(0.2756) Solid Carbide 3 Flute TiN Coated, 8.0mm(0.3150) Solid Carbide 3 Flute TiN Coated, 9.0mm(0.3543) Solid Carbide 3 Flute TiN Coated, 10.0mm(0.3937) Solid Carbide 3 Flute TiN Coated, 11.0mm(0.4331) Solid Carbide 3 Flute TiN Coated, 12.0mm(0.4724) Solid Carbide 3 Flute TiN Coated, 14.0mm(0.5512) Solid Carbide 3 Flute TiN Coated, 16.0mm(0.6299) Solid Carbide 3 Flute TiN Coated

Metric 3 Flute Size:

3.0mm(0.1181) Solid Carbide 3 Flute TiN Coated, 4.0mm(0.1575) Solid Carbide 3 Flute TiN Coated, 5.0mm(0.1969) Solid Carbide 3 Flute TiN Coated, 6.0mm(0.2362) Solid Carbide 3 Flute TiN Coated, 7.0mm(0.2756) Solid Carbide 3 Flute TiN Coated, 8.0mm(0.3150) Solid Carbide 3 Flute TiN Coated, 9.0mm(0.3543) Solid Carbide 3 Flute TiN Coated, 10.0mm(0.3937) Solid Carbide 3 Flute TiN Coated, 11.0mm(0.4331) Solid Carbide 3 Flute TiN Coated, 12.0mm(0.4724) Solid Carbide 3 Flute TiN Coated, 14.0mm(0.5512) Solid Carbide 3 Flute TiN Coated, 16.0mm(0.6299) Solid Carbide 3 Flute TiN Coated
