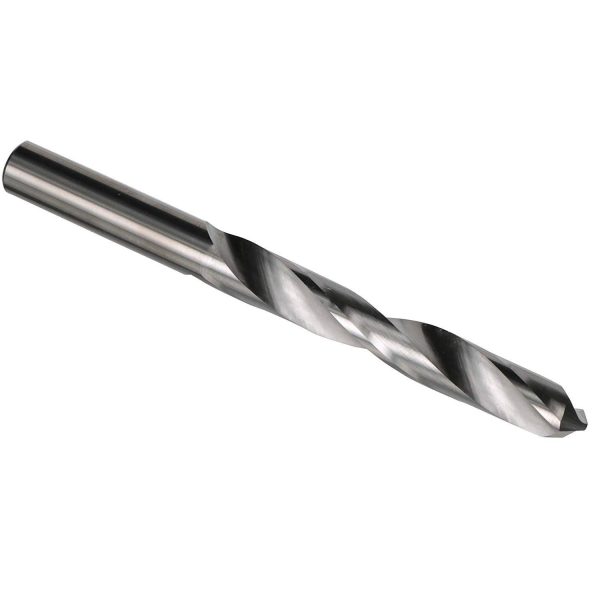

Solid micrograin carbide drill bit with split point tip on white background

XNF Sub-Micron Solid Carbide Twist Drill Bits – Metric

SKU: N/A

Categories:METRIC Carbide Drill Bits 3 Flute, Carbide Drill Bits, Carbide Twist Drill Bits (Steel & Non-Ferrous), Drill Bits

Price range: $15.98 through $144.59

Made in USA

Metric Drill Size:

Clear

Family Owned. Slightly Twisted.

Real people who actually know drill bits pick up the phone.

Fast Shipping Nationwide

Most orders are out the door the same or next business day.

Built for Steel, Not Shelves

Shop-grade bits for people who drill all day and break stuff for a living.

Stumped? Call the Bit Experts.

Tell us the material and the job, and we'll get you the right bit. 800-350-8665.

Solid Carbide Sub-Micron Jobber Twist Drill Bits – Made in USA

XNF Sub-Micron Solid Carbide Twist Drill Bits – Metric

Metric Solid Carbide Drill Bits – Sizes 1.0mm through 12.5mm
Precision Ground • 4-Facet 118° Split Point • Made in USA

The XNF Metric Solid Carbide Twist Drill Bits are precision ground from premium sub-micron solid carbide for exceptional rigidity, wear resistance, dimensional accuracy, and tool life.

Designed for professional machining and production drilling, these metric carbide drill bits feature a 4-facet 118° split point for fast, accurate starts with reduced walking. A 2-flute, 25° helix provides efficient chip evacuation and smooth cutting performance in rigid machine setups.

With tight diameter control and precision-ground cutting geometry, these solid carbide drills are capable of producing reamer-type hole finishes in the proper application, making them an excellent choice where hole size, finish, accuracy, and repeatability matter.

Cutting Geometry

Sub-micron solid carbide
4-facet 118° split point
2-flute design
25° helix
Right-hand cut
Right-hand spiral
Bright / uncoated finish

Recommended Materials

Excellent for drilling:

Steel
Cast iron
Aluminum and aluminum alloys
Brass
Bronze
Copper and copper alloys
Non-ferrous alloys
Plastics and composites
Abrasive materials

Also suitable in the proper machine setup and cutting conditions for:

Stainless steel
Nickel alloys
Titanium
Hardened steels
Other difficult-to-machine materials

Features

Metric solid carbide drill bits from 1.0mm through 12.5mm
Premium sub-micron carbide
Precision-ground solid carbide construction
4-facet 118° split point
2-flute, 25° helix
Fast, accurate starting with reduced walking
Efficient chip evacuation
Excellent rigidity and wear resistance
Tight diameter control
h7 metric tolerance
Excellent hole size and dimensional accuracy
Capable of reamer-type finishes
Designed for CNC, toolroom, and production drilling
Made in USA

Solid carbide provides substantially greater rigidity and wear resistance than conventional HSS or cobalt drills. In rigid machining setups, XNF carbide drills provide excellent hole quality, cutting-edge stability, dimensional control, and extended tool life, especially in abrasive materials and production applications.

For best tool life, hole quality, and cutting performance, use the proper speeds and feeds with coolant or cutting fluid directed at the point of cut.

Need Help Choosing the Right Carbide Drill Bit?
Call 800-350-TOOL — that’s what we’re here for.

Made in USA

Metric Size	Decimal Inch	LOC	OAL	SKU
1.0mm	.0394″	16mm	38mm	DR-450-0.0394
1.5mm	.0625″	19mm	38mm	DR-450-0.0625
2.0mm	.0787″	22mm	45mm	DR-450-0.0787
2.5mm	.0984″	25mm	51mm	DR-450-0.0984
3.0mm	.1181″	32mm	57mm	DR-450-0.1181
3.5mm	.1378″	35mm	64mm	DR-450-0.1378
4.0mm	.1575″	35mm	64mm	DR-450-0.1575
4.5mm	.1772″	41mm	70mm	DR-450-0.1772
5.0mm	.1969″	45mm	75mm	DR-450-0.1969
5.5mm	.2165″	45mm	76mm	DR-450-0.2165
6.0mm	.2362″	51mm	83mm	DR-450-0.2362
6.5mm	.2559″	51mm	83mm	DR-450-0.2559
7.0mm	.2756″	54mm	89mm	DR-450-0.2756
7.5mm	.2953″	60mm	95mm	DR-450-0.2953
8.0mm	.3150″	60mm	95mm	DR-450-0.3150
8.5mm	.3346″	64mm	102mm	DR-450-0.3346
9.0mm	.3543″	64mm	102mm	DR-450-0.3543
9.5mm	.3740″	70mm	108mm	DR-450-0.3740
10.0mm	.3937″	73mm	114mm	DR-450-0.3937
10.5mm	.4134″	73mm	114mm	DR-450-0.4134
11.0mm	.4331″	73mm	114mm	DR-450-0.4331
11.5mm	.4528″	76mm	121mm	DR-450-0.4528
12.0mm	.4724″	76mm	121mm	DR-450-0.4724
12.5mm	.4921″	76mm	121mm	DR-450-0.4921

Made in USA

Looking for Fractional?

https://www.drillbitwarehouse.com/product/premium-solid-carbide-sub-micron-jobber-drill-bit/

Additional information

Weight	1 lbs
Metric Drill Size:	1mm (0.0394) x 16mm LOC x 38mm OAL Solid Carbide Jobber Drill Bit, 1.5mm (0.0625) x 19mm LOC x 38mm OAL Solid Carbide Jobber Drill Bit, 2mm (0.0787) x 22mm LOC x 45mm OAL Solid Carbide Jobber Drill Bit, 2.5mm (0.0984) x 25mm LOC x 51mm OAL Solid Carbide Jobber Drill Bit, 3mm (0.1181) x 32mm LOC x 57mm OAL Solid Carbide Jobber Drill Bit, 3.5mm (0.1378) x 35mm LOC x 64mm OAL Solid Carbide Jobber Drill Bit, 4mm (0.1575) x 35mm LOC x 64mm OAL Solid Carbide Jobber Drill Bit, 4.5mm (0.1772) x 41mm LOC x 70mm OAL Solid Carbide Jobber Drill Bit, 5mm (0.1969) x 45mm LOC x 75mm OAL Solid Carbide Jobber Drill Bit, 5.5mm (0.2165) x 45mm LOC x 76mm OAL Solid Carbide Jobber Drill Bit, 6mm (0.2362) x 51mm LOC x 83mm OAL Solid Carbide Jobber Drill Bit, 6.5mm (0.2559) x 51mm LOC x 83mm OAL Solid Carbide Jobber Drill Bit, 7mm (0.2756) x 54mm LOC x 89mm OAL Solid Carbide Jobber Drill Bit, 7.5mm (0.2953) x 60mm LOC x 95mm OAL Solid Carbide Jobber Drill Bit, 8mm (0.3150) x 60mm LOC x 95mm OAL Solid Carbide Jobber Drill Bit, 8.5mm (0.3346) x 64mm LOC x 102mm OAL Solid Carbide Jobber Drill Bit, 9mm (0.3543) x 64mm LOC x 102mm OAL Solid Carbide Jobber Drill Bit, 9.5mm (0.3740) x 70mm LOC x 108mm OAL Solid Carbide Jobber Drill Bit, 10mm (0.3937) x 73mm LOC x 114mm OAL Solid Carbide Jobber Drill Bit, 10.5mm (0.4134) x 73mm LOC x 114mm OAL Solid Carbide Jobber Drill Bit, 11mm (0.4331) x 73mm LOC x 114mm OAL Solid Carbide Jobber Drill Bit, 11.5mm (0.4528) x 76mm LOC x 121mm OAL Solid Carbide Jobber Drill Bit, 12mm (0.4724) x 76mm LOC x 121mm OAL Solid Carbide Jobber Drill Bit, 12.5mm (0.4921) x 16mm LOC x 38mm OAL Solid Carbide Jobber Drill Bit

Weight

1 lbs

Metric Drill Size:

1mm (0.0394) x 16mm LOC x 38mm OAL Solid Carbide Jobber Drill Bit, 1.5mm (0.0625) x 19mm LOC x 38mm OAL Solid Carbide Jobber Drill Bit, 2mm (0.0787) x 22mm LOC x 45mm OAL Solid Carbide Jobber Drill Bit, 2.5mm (0.0984) x 25mm LOC x 51mm OAL Solid Carbide Jobber Drill Bit, 3mm (0.1181) x 32mm LOC x 57mm OAL Solid Carbide Jobber Drill Bit, 3.5mm (0.1378) x 35mm LOC x 64mm OAL Solid Carbide Jobber Drill Bit, 4mm (0.1575) x 35mm LOC x 64mm OAL Solid Carbide Jobber Drill Bit, 4.5mm (0.1772) x 41mm LOC x 70mm OAL Solid Carbide Jobber Drill Bit, 5mm (0.1969) x 45mm LOC x 75mm OAL Solid Carbide Jobber Drill Bit, 5.5mm (0.2165) x 45mm LOC x 76mm OAL Solid Carbide Jobber Drill Bit, 6mm (0.2362) x 51mm LOC x 83mm OAL Solid Carbide Jobber Drill Bit, 6.5mm (0.2559) x 51mm LOC x 83mm OAL Solid Carbide Jobber Drill Bit, 7mm (0.2756) x 54mm LOC x 89mm OAL Solid Carbide Jobber Drill Bit, 7.5mm (0.2953) x 60mm LOC x 95mm OAL Solid Carbide Jobber Drill Bit, 8mm (0.3150) x 60mm LOC x 95mm OAL Solid Carbide Jobber Drill Bit, 8.5mm (0.3346) x 64mm LOC x 102mm OAL Solid Carbide Jobber Drill Bit, 9mm (0.3543) x 64mm LOC x 102mm OAL Solid Carbide Jobber Drill Bit, 9.5mm (0.3740) x 70mm LOC x 108mm OAL Solid Carbide Jobber Drill Bit, 10mm (0.3937) x 73mm LOC x 114mm OAL Solid Carbide Jobber Drill Bit, 10.5mm (0.4134) x 73mm LOC x 114mm OAL Solid Carbide Jobber Drill Bit, 11mm (0.4331) x 73mm LOC x 114mm OAL Solid Carbide Jobber Drill Bit, 11.5mm (0.4528) x 76mm LOC x 121mm OAL Solid Carbide Jobber Drill Bit, 12mm (0.4724) x 76mm LOC x 121mm OAL Solid Carbide Jobber Drill Bit, 12.5mm (0.4921) x 16mm LOC x 38mm OAL Solid Carbide Jobber Drill Bit
