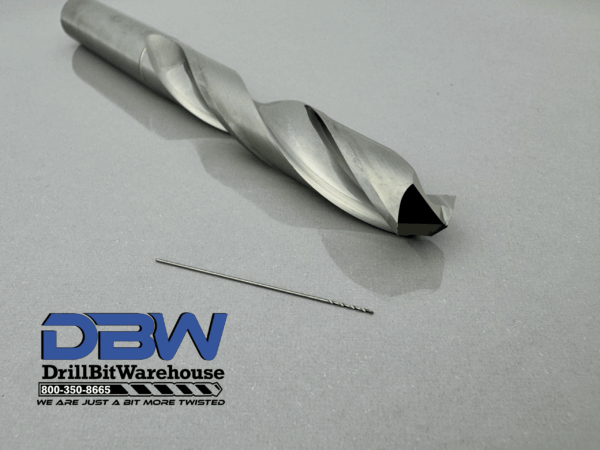

XNF Sub-Micron Solid Carbide Twist Drill Bits – Fractional

XNF Sub-Micron Solid Carbide Twist Drill Bits – Fractional

Fractional Solid Carbide Drill Bits – Sizes 1/64″ through 1/2″
Precision Ground • 4-Facet 118° Split Point • Made in USA

The XNF Fractional Solid Carbide Twist Drill Bits are precision ground from premium sub-micron solid carbide for exceptional rigidity, wear resistance, dimensional accuracy, and tool life.

Designed for professional machining and production drilling, these fractional carbide drill bits feature a 4-facet 118° split point for fast, accurate starts with reduced walking. A 2-flute, 25° helix provides efficient chip evacuation and smooth cutting performance in rigid machine setups.

With tight diameter control and precision-ground cutting geometry, these solid carbide drills are capable of producing reamer-type hole finishes in the proper application, making them an excellent choice where hole size, finish, accuracy, and repeatability matter.

Cutting Geometry

• Sub-micron solid carbide
• 4-facet 118° split point
• 2-flute design
• 25° helix
• Right-hand cut
• Right-hand spiral
• Bright / uncoated finish

Recommended Materials

Excellent for drilling:

• Steel
• Cast iron
• Aluminum and aluminum alloys
• Brass
• Bronze
• Copper and copper alloys
• Non-ferrous alloys
• Plastics and composites
• Abrasive materials

Also suitable in the proper machine setup and cutting conditions for:

• Stainless steel
• Nickel alloys
• Titanium
• Hardened steels
• Other difficult-to-machine materials

Features

• Fractional solid carbide drill bits from 1/64″ through 1/2″
• Premium sub-micron carbide
• Precision-ground solid carbide construction
• 4-facet 118° split point
• 2-flute, 25° helix
• Fast, accurate starting with reduced walking
• Efficient chip evacuation
• Excellent rigidity and wear resistance
• Tight diameter control
• Diameter tolerance: +.0000″ / -.0005″
• Excellent hole size and dimensional accuracy
• Capable of reamer-type finishes
• Designed for CNC, toolroom, and production drilling
• Made in USA

Solid carbide provides substantially greater rigidity and wear resistance than conventional HSS or cobalt drills. In rigid machining setups, XNF carbide drills provide excellent hole quality, cutting-edge stability, dimensional control, and extended tool life, especially in abrasive materials and production applications.

For best tool life, hole quality, and cutting performance, use the proper speeds and feeds with coolant or cutting fluid directed at the point of cut.

Need Help Choosing the Right Carbide Drill Bit?
Call 800-350-TOOL — that’s what we’re here for.

Made in USA
