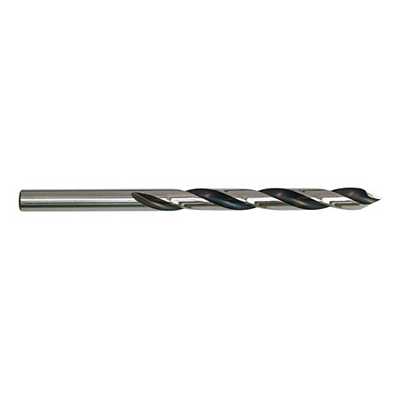

5/16″ ACRYLI-DRILL® Plastic-Cutting Drill Bit – USA Made

Designed specifically for plastics, the 5/16″ ACRYLI-DRILL® delivers clean, accurate holes in acrylic, Plexiglass®, Lexan®, polycarbonate, laminates, composites, and many other plastic materials.

Unlike conventional twist drills that can grab, crack, or chip brittle plastics, ACRYLI-DRILL® Bits feature our Super CHIPFREE™ Point and a 0° rake cutting edge to provide smoother drilling and greater control.

The Super CHIPFREE™ Point is precision-ground to a 60° point angle, allowing gradual penetration into the material to help minimize cracking and edge chipping.

A specially engineered 0° rake angle on the cutting edge reduces the tendency of the drill to “grab” as it breaks through plastic, helping produce cleaner holes and improved surface finish.

These bits are widely used throughout the plastics fabrication industry and are even trusted for drilling acrylic aircraft windshields where hole quality is critical.

Features

• Super CHIPFREE™ 60° precision-ground point
• 0° rake cutting geometry helps reduce grabbing
• Designed specifically for plastics and acrylics
• Helps minimize cracking, chipping, and melting
• Produces clean, accurate holes
• Made in the USA

Ideal For

• Acrylic
• Plexiglass®
• Lexan®
• Polycarbonate
• Laminates
• Composite materials
• Many other plastics

Specifications

• Diameter: 5/16″
• Shank: 1/4″
• Overall Length: 2-1/2″
• Sold: Individually
• Made in: USA

Pro Tip: Acrylic and other plastics expand and contract with temperature changes. When appropriate for your application, consider allowing additional clearance in hole size to accommodate material movement.
